   1 /*dot version 1.15.20040901.0430
   2 ,rankdir=LR*/
   3

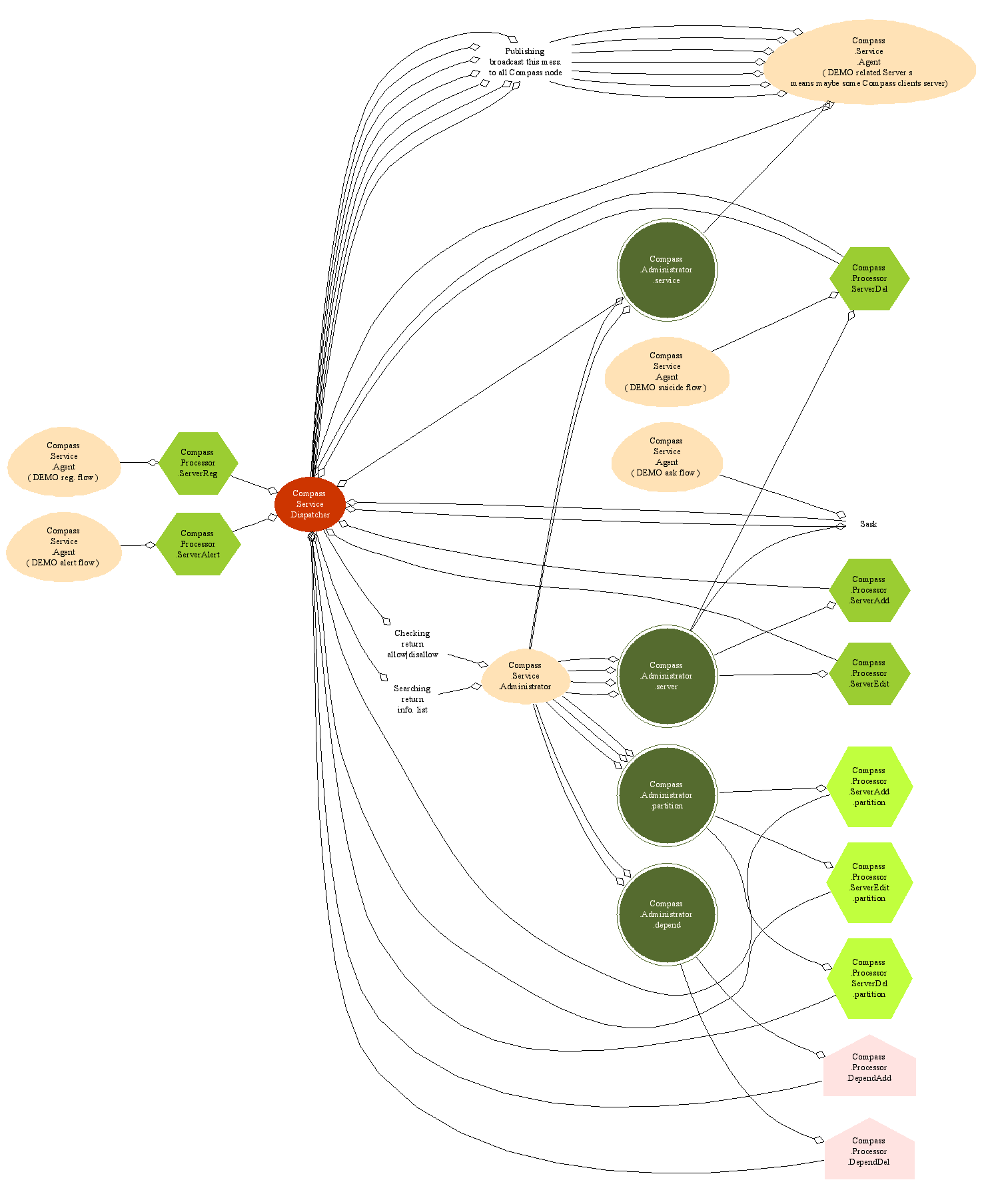

   4 digraph C {
   5 graph [size="30,20",ratio=compress];
   6 node[fontsize=10.0];
   7 edge [];
   8
   9     /*注册流程*/
  10 CC1->dmreg->CS->Sreg->CS->chk->CC1 [color=dodgerblue ];
  11 CS->Sadd[color=dodgerblue ];
  12 CS->SPadd [color=dodgerblue ];
  13 CS->Dadd [color=dodgerblue ];
  14 CS->pub->CC [color=dodgerblue ];
  15
  16     /*自杀流程 ->chk->CC2*/
  17 CC2->dmdel->CS[color=firebrick4 ];
  18 CS->Sedit[color=firebrick4 ];
  19 CS->Sdel[color=firebrick4 ];
  20 CS->SPedit[color=firebrick4 ];
  21 CS->SPdel[color=firebrick4 ];
  22 CS->Ddel[color=firebrick4 ];
  23 CS->pub->CC[color=firebrick4 ];
  24
  25     /*查询流程*/
  26 CC3->dmask->CS->Sask->ls->CC3[color=lightslategray];
  27
  28     /*报警流程*/
  29 CC4->dmalert->CS->Salt[color=green ];
  30 CS->Sedit[color=green ];
  31 CS->Sdel[color=green ];
  32 CS->SPedit[color=green ];
  33 CS->SPdel[color=green ];
  34 CS->Ddel[color=green ];
  35 Salt->pub->CC[color=green ];
  36
  37 /* 结点定义 */
  38 /*核心服务 fontcolor=floralwhite,style=filled,color=orangered3,shape=ellipse */
  39     /*调度员服务*/
  40 CS[label="Woodpecker.OGNS\n.Service\n.Dispatcher"
  41     ,fontcolor=floralwhite,style=filled,color=orangered3,shape=ellipse];
  42     /*Service.Agent 中介者服务*/
  43 CC[label="Woodpecker.OGNS\n.Service\n.Agent\n( DEMO related Server s \n means maybe some Woodpecker.OGNS clients server)"
  44     ,style=filled,color=moccasin,shape=egg];
  45 CC1[label="Compass\n.Service\n.Agent\n( DEMO reg. flow )"
  46     ,style=filled,color=moccasin,shape=egg];
  47 CC2[label="Compass\n.Service\n.Agent\n( DEMO suicide flow )"
  48     ,style=filled,color=moccasin,shape=egg];
  49 CC3[label="Compass\n.Service\n.Agent\n( DEMO ask flow )"
  50     ,style=filled,color=moccasin,shape=egg];
  51 CC4[label="Compass\n.Service\n.Agent\n( DEMO alert flow )"
  52     ,style=filled,color=moccasin,shape=egg];
  53
  54 dmreg[label=" standard\n Compass Agent \nreg. server flow "];
  55 dmdel[label=" standard\n Compass Agent \n suicide server flow "];
  56 dmask[label=" standard\n Compass Agent \n ask server flow "];
  57 dmalert[label=" DEMO\n Compass Agent \n alert server die flow "];
  58
  59
  60 /*服务事务 style=filled,color=yellowgreen,shape=hexagon*/
  61 Sreg[label="Woodpecker.OGNS\n.Processor\n.ServerReg"
  62     style=filled,color=yellowgreen,shape=hexagon];
  63 Sadd[label="Woodpecker.OGNS\n.Processor\n.ServerAdd"
  64     style=filled,color=yellowgreen,shape=hexagon];
  65 Sedit[label="Woodpecker.OGNS\n.Processor\n.ServerEdit"
  66     style=filled,color=yellowgreen,shape=hexagon];
  67 Sdel[label="Woodpecker.OGNS\n.Processor\n.ServerDel"
  68     style=filled,color=yellowgreen,shape=hexagon];
  69 Salt[label="Woodpecker.OGNS\n.Processor\n.ServerAlert"
  70     style=filled,color=yellowgreen,shape=hexagon];
  71 Sask[label="Woodpecker.OGNS\n.Processor\n.ServerAsk"
  72     style=filled,color=yellowgreen,shape=hexagon];
  73
  74 /*依赖事务 style=filled,color=mistyrose,shape=house*/
  75 Dadd[label="Woodpecker.OGNS\n.Processor\n.DependAdd"
  76     style=filled,color=mistyrose,shape=house];
  77 Ddel[label="Woodpecker.OGNS\n.Processor\n.DependDel"
  78     style=filled,color=mistyrose,shape=house];
  79
  80 /*分区事务 style=filled,color=olivedrab1,shape=hexagon*/
  81 SPadd[label="Woodpecker.OGNS\n.Processor\n.ServerAdd\n.partition"
  82     style=filled,color=olivedrab1,shape=hexagon];
  83 SPedit[label="Woodpecker.OGNS\n.Processor\n.ServerEdit\n.partition"
  84     style=filled,color=olivedrab1,shape=hexagon];
  85 SPdel[label="Woodpecker.OGNS\n.Processor\n.ServerDel\n.partition"
  86     style=filled,color=olivedrab1,shape=hexagon];
  87
  88 /*事务处理 */
  89 chk[label="Checking\n return\n allow|disallow"];
  90 ls[label="Searching\n return\n info. list"];
  91 pub[label="Publishing\n broadcast this mess.\n to all Woodpecker.OGNS node"];
  92
